Detailed Description

An outdoor LED display is a type of LED screen specifically designed for use in outdoor environments where it must endure various weather conditions such as rain, high temperatures, direct sunlight, and dust. These displays are commonly used for large-scale advertising, public information displays, and entertainment applications in public spaces like stadiums, billboards, transportation hubs, and shopping centers.

An outdoor LED digital billboard is a large, high-resolution display screen made up of LED (Light Emitting Diode) technology, designed specifically for outdoor environments to display dynamic content such as advertisements, public information, live feeds, and other digital media. These billboards are commonly used in high-traffic areas like highways, city streets, shopping centers, sports arenas, and public squares, offering advertisers a platform to engage with large audiences.

Key Features of Outdoor LED Digital Billboards

Outdoor LED digital billboards are high-visibility, durable, and dynamic display solutions designed for advertising, public information, and real-time content delivery. Here are the key features that make them highly effective for outdoor applications > > >

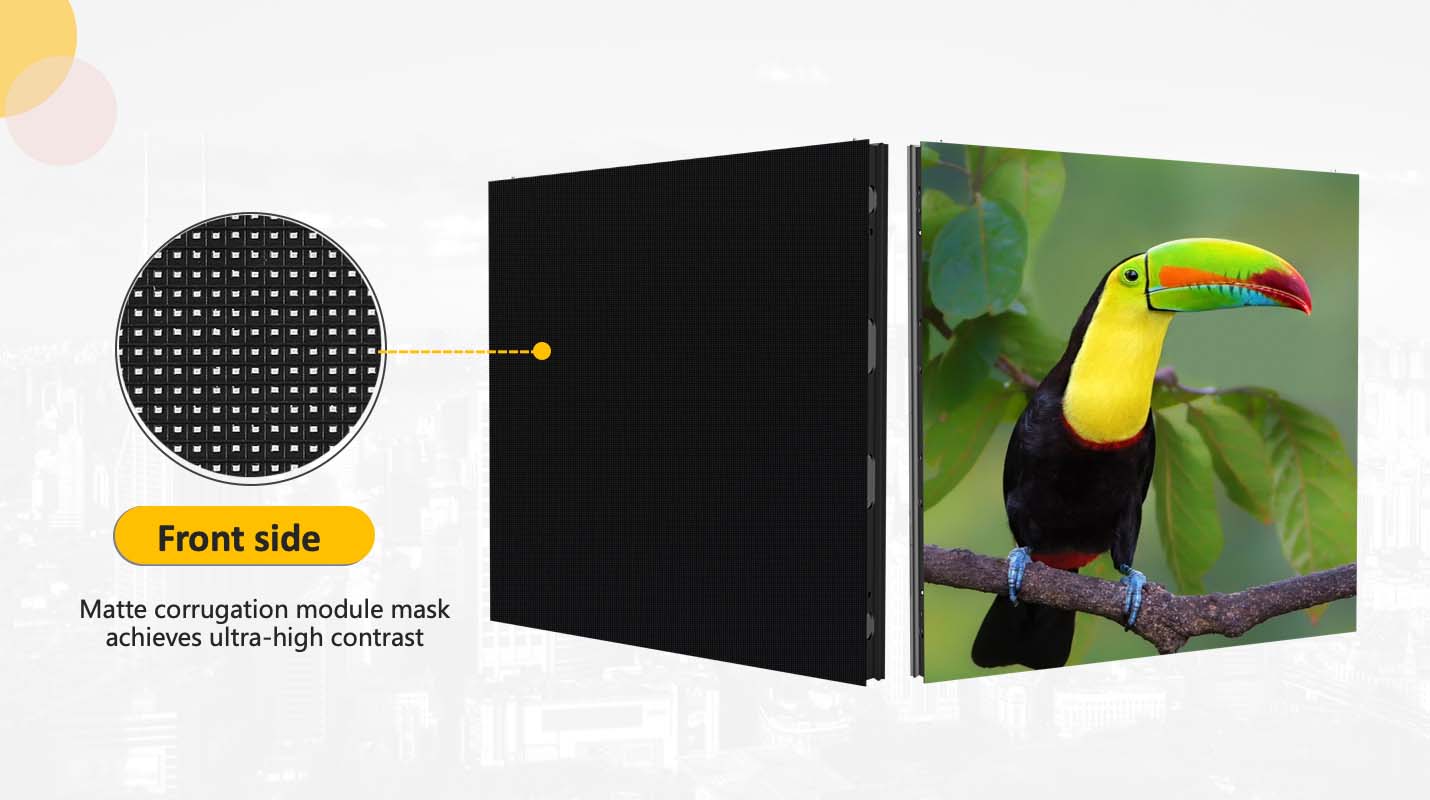

Why Matte corrugation module make achieves ultra-high contrast for outdoor led display ?

Matte corrugation modules achieve ultra-high contrast for outdoor LED displays due to their unique design that minimizes light reflections and optimizes the display's visibility under varying lighting conditions. Here's why they work so well:

Surface Texture and Light Diffusion: The matte finish, combined with a corrugated surface, scatters ambient light rather than reflecting it directly back into the viewer's eyes. This prevents glare and "washout," a common issue when viewing outdoor led displays under bright sunlight. The result is better visibility and clarity of the Outdoor LED digital billboard, even during the day.

Increased Contrast: Because the matte surface minimizes reflections, the LEDs' brightness isn't compromised by external light sources. This creates a higher contrast ratio where the bright colors pop more vibrantly against darker backgrounds, improving the overall image quality.

Enhanced Visibility in Direct Sunlight: Outdoor displays are often exposed to direct sunlight, which can easily overpower the screen's brightness and reduce its contrast. The matte corrugation helps to diffuse and absorb light, maintaining the deep blacks and bright whites of the large outdoor LED display, making it visible in a wide range of lighting conditions, especially in harsh daylight.

Improved Anti-Glare Properties: The texture of matte corrugation diffuses and softens the light, reducing sharp reflections from surrounding surfaces or from the screen itself. This keeps the display clear and sharp from multiple viewing angles, ensuring that people viewing the outdoor led screen from various positions still experience optimal contrast.

In essence, matte corrugation modules improve contrast by controlling how light interacts with the display’s surface, keeping the colors more vivid and the text and images more readable, even in challenging outdoor environments with intense sunlight.

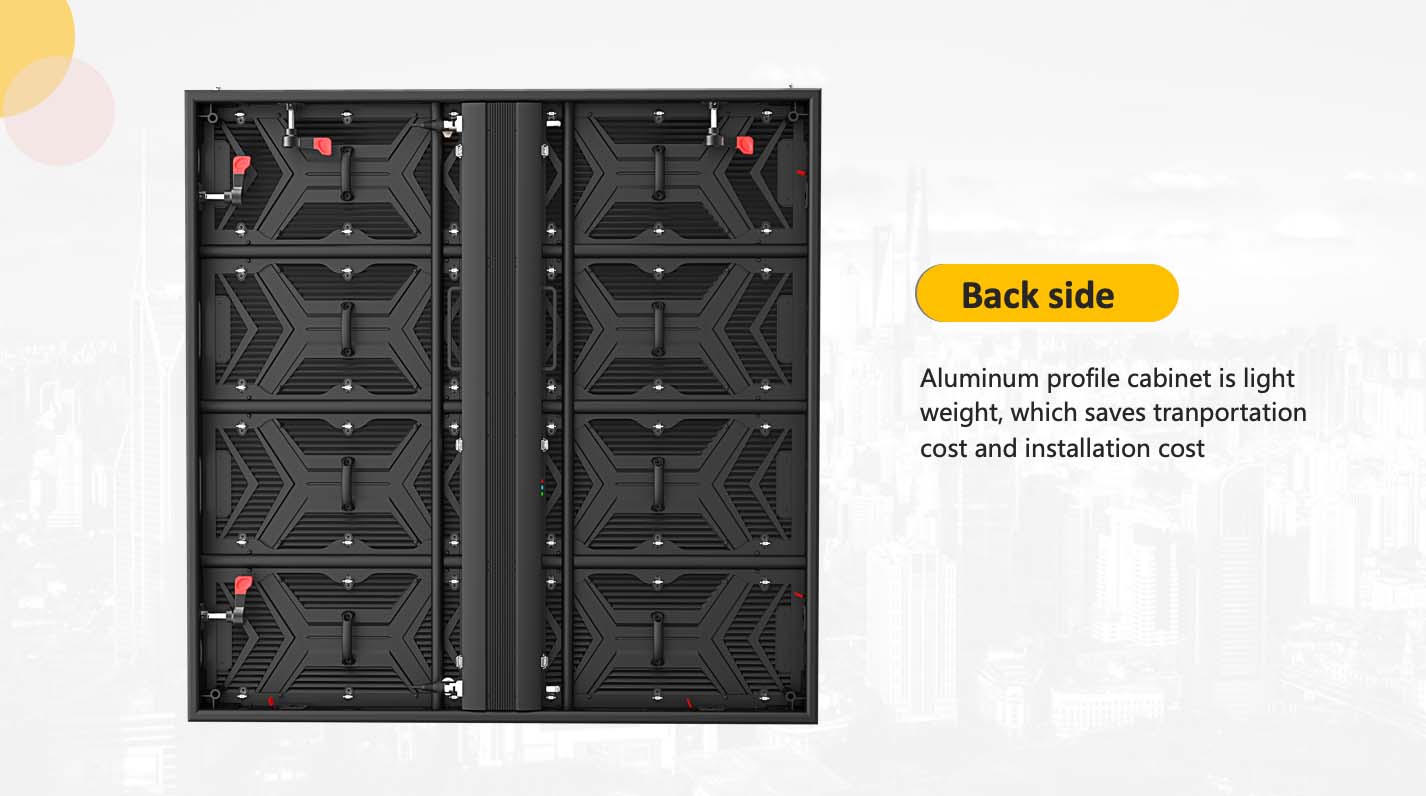

What are Advantages of aluminum profile cabinet for outdoor led display ? Aluminum profile cabinets for outdoor LED displays offer several advantages, making them a popular choice for high-quality, durable, and efficient displays. Here are the key benefits for outdoor led cabinet and led digital billboard > > >

The LED panel size for outdoor digital billboards generally refers to the dimensions of each modular unit that makes up the larger display. These panels are typically designed to be modular, allowing them to be combined to form a large, seamless display surface. Here are the common panel sizes used for outdoor digital billboards:

Common Panel Sizes for Outdoor LED Digital Billboards:

Most Common Size: This is one of the most widely used panel sizes for outdoor digital billboards. It offers flexibility in terms of resolution and is easy to handle for transportation and installation.

Applications: Often used for urban signage, medium-sized digital billboards, and smaller outdoor displays.

960mm x 960mm (37.8" x 37.8")

Larger Panels: These are used for bigger outdoor billboards and allow for larger images with fewer seams between panels, making them ideal for large-scale advertising in high-traffic areas.

Applications: Popular for larger digital billboards in cities, highways, and sports venues.

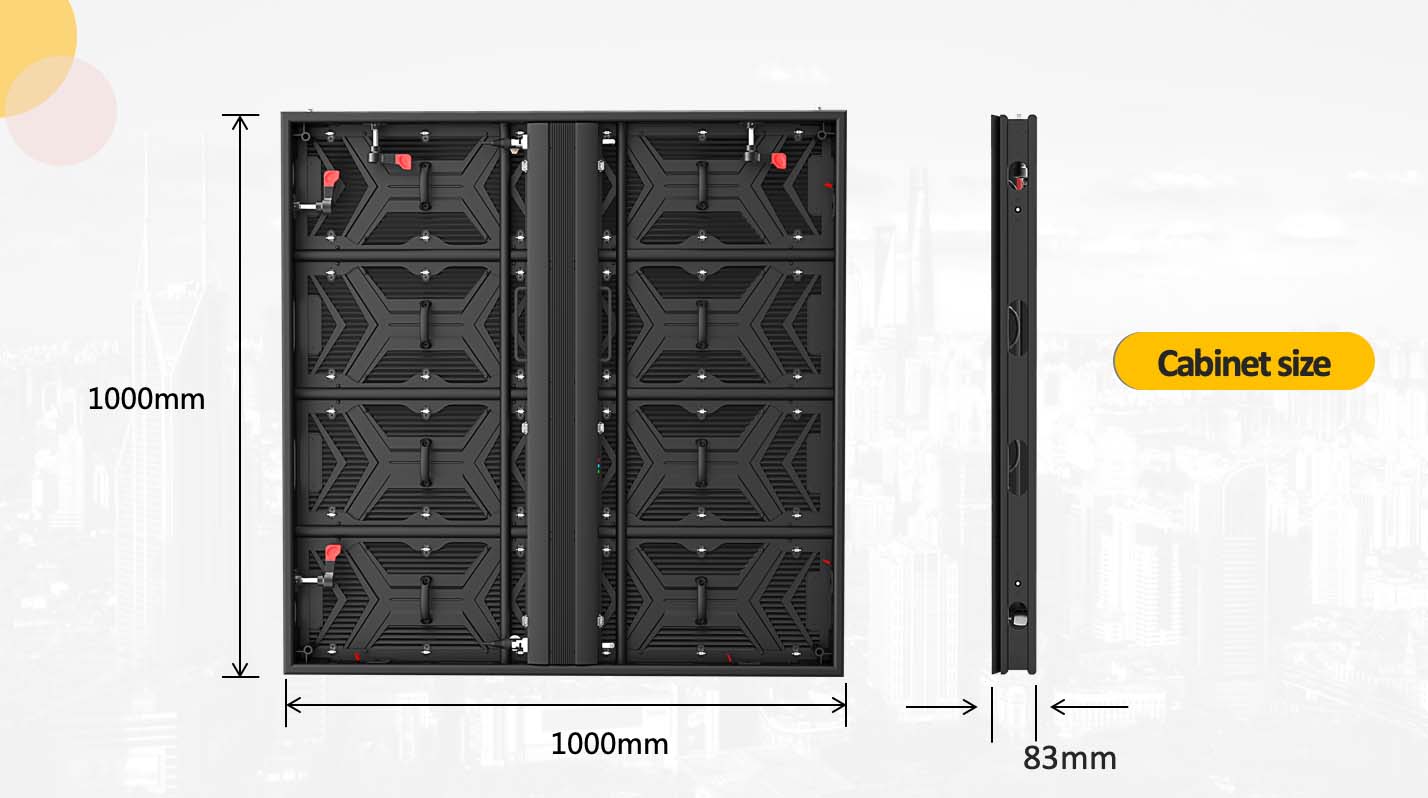

1000mm x 1000mm (39.4" x 39.4")

Extra-Large Panels: Used for very large billboards, this panel size is ideal for ultra-large displays that need to be highly visible from great distances.

Applications: Large digital billboards in stadiums, major roadways, or iconic public places.

Key Factors Influencing Panel Size:

Pixel Pitch: The pixel pitch (the distance between pixels) affects the size and resolution of the panel. Smaller pixel pitches (e.g., P2.5, P3.9) often result in more densely packed LED modules and smaller panels, which is ideal for finer resolution and close-up viewing.

Viewing Distance: Larger panels are often used when the viewing distance is greater, as they provide the ability to display larger images that are visible from farther away.

Advantages of Modular Panel Design:

Scalability: You can create a large display by simply combining smaller panels, making modular designs highly scalable.

Ease of Maintenance: If one panel fails, it’s easier to replace individual panels rather than the entire billboard.

Transportability: Modular panels make transportation and installation more manageable, as they can be moved as individual units rather than as a large, single LED display.

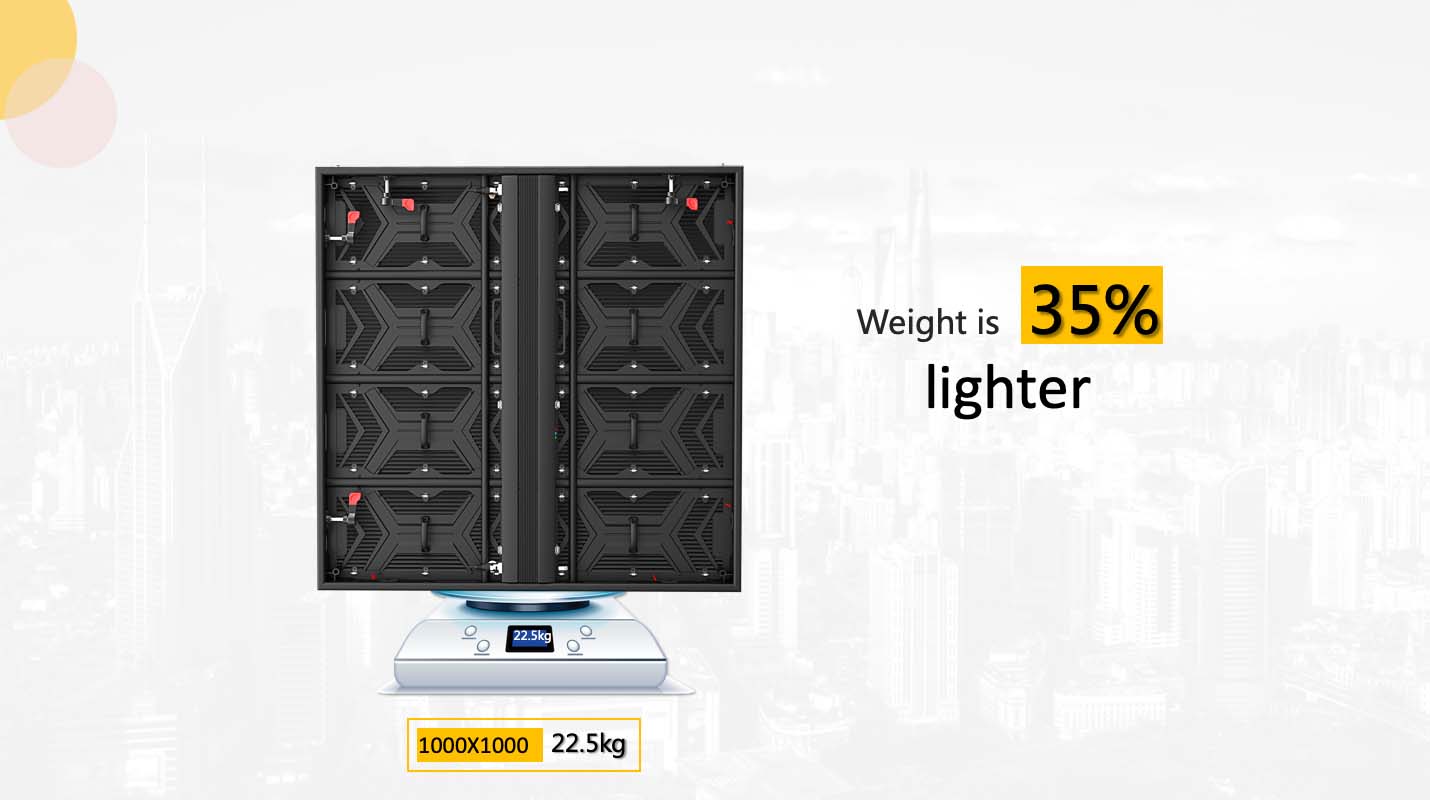

The weight of an outdoor LED display cabinet can vary based on several factors, including the size of the cabinet, the materials used, and the design features. However, here’s a general breakdown of the weight ranges for typical outdoor LED display cabinets:

1. Larger Size Cabinets (960mm x 960mm)

Weight Range: Approximately 18-25 kg (39-55 lbs) per panel

Description: Larger panels offer greater surface area and fewer seams between LED modules. The additional weight is due to the larger LED display size and the added structural components that help support the Outdoor LED display’s durability.

2. Extra-Large Cabinets (1000mm x 1000mm or 1200mm x 1200mm)

Weight Range: Approximately 25-40 kg (55-88 lbs) per LED panel

Description: These LED cabinets are typically used in larger outdoor installations where high brightness and durability are required. The increased weight is due to the larger dimensions and the need for enhanced structural integrity, especially in more extreme weather conditions.

3. Factors Influencing Weight:

Material: Most outdoor LED display cabinets use aluminum or steel for their frames. Aluminum cabinets are typically lighter compared to steel, making them easier to handle.

Pixel Pitch: Panels with smaller pixel pitches (e.g., P2.5, P3.9) often have more densely packed LEDs, which may slightly increase the weight of the LED cabinet due to the additional components needed for better heat dissipation and precision.

Heat Dissipation Features: Cabinets with enhanced heat management (such as additional heat sinks or fans) may weigh slightly more due to the added cooling components.

Weatherproofing & IP Rating: Outdoor cabinets need to be well-sealed against weather, dust, and moisture. Panels with higher IP ratings (such as IP65 or IP67) for water and dust resistance may be heavier due to reinforced enclosures.

The weight of an outdoor LED display cabinet typically falls between 18 kg to 40 kg (17 lbs to 88 lbs) per panel, depending on the size, material, and design features. The weight of the entire LED display system will be higher as multiple cabinets are connected to form a larger display, but the individual cabinet weight gives you a good estimate for installation logistics and structural planning.

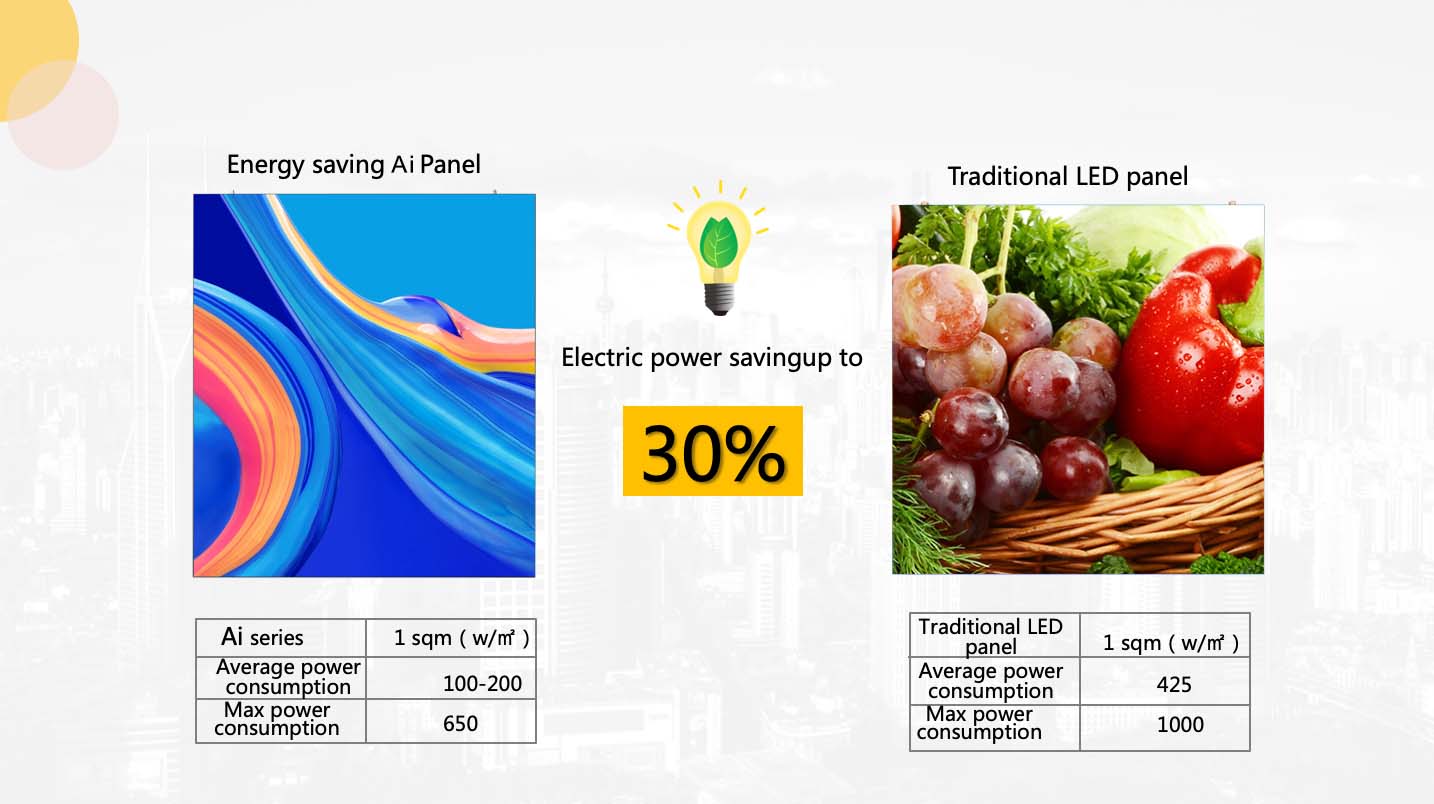

To optimize energy savings for an outdoor LED display, the best solution would involve a combination of smart technology, efficient components, and operational strategies. Here’s a breakdown of the most effective energy-saving solutions:

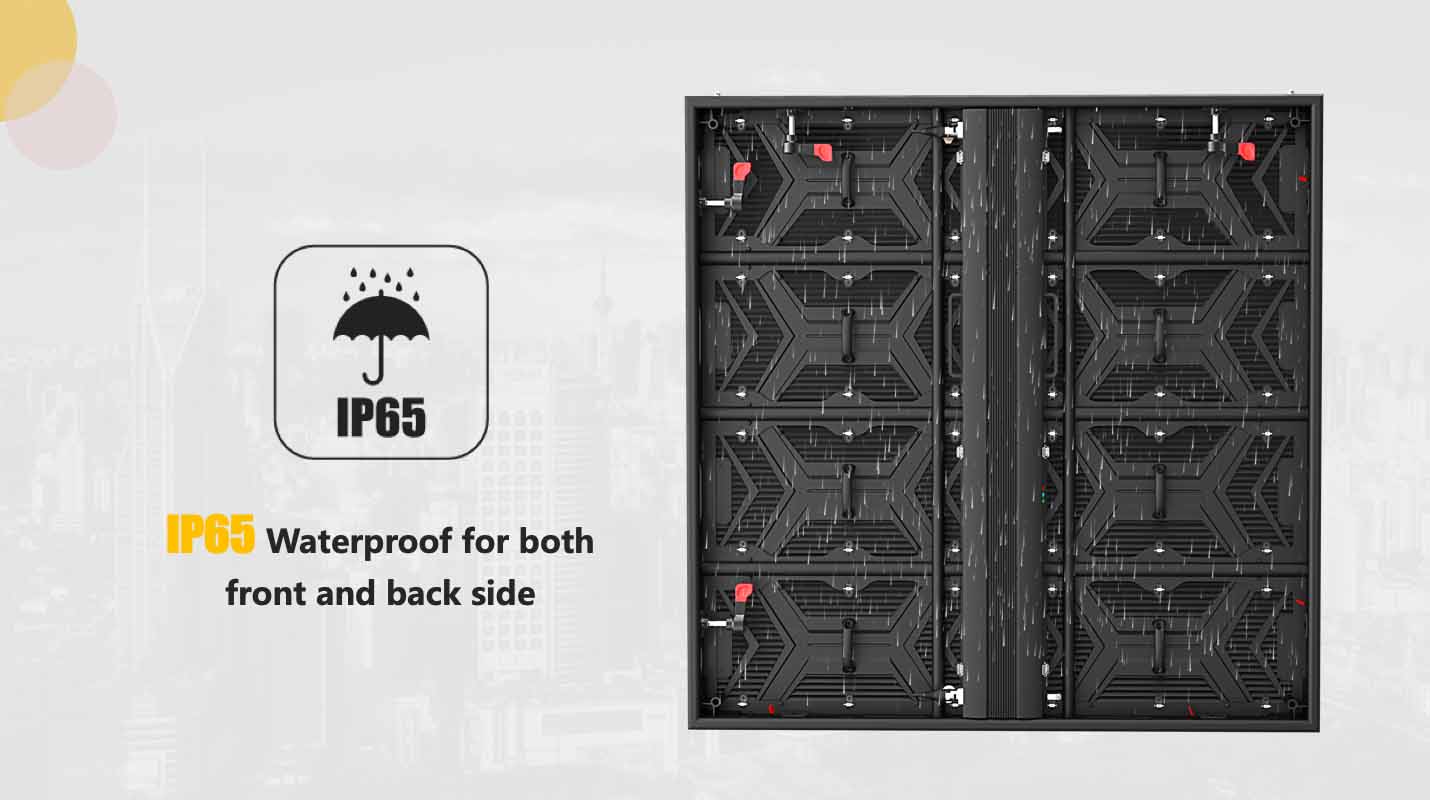

In the outdoor environment, LED display need to deal with rain, humidity, dust, temperature difference and other multiple challenges, waterproof design is directly related to its life and stability. The following are the core problems and solutions that need to be solved for LED outdoor display waterproofing > > >
